Throttle Body Solution Early Audi V8

, ,

Throttle Body Solution for a Early Audi 4.2L V8

Our 2000 Audi A6 4.2L V8 loaner car had a throttle body (TB) fail on it a few weeks ago and we needed a Throttle Body Solution.For the life of us, we could not find a ne, let alone a used unit. After searching the internet on and off for days end, we finally found a compatible throttle body. Apparently the Porsche 986 996 997 & GT3  uses the exact same 75mm housing. This is Part Number: 997 Same bolt pattern and casting for a 4.2L V8 – 2000 Audi A6. It’s also the same throttle body for a 2000, 2001, 2002 and 2003 Audi A8.

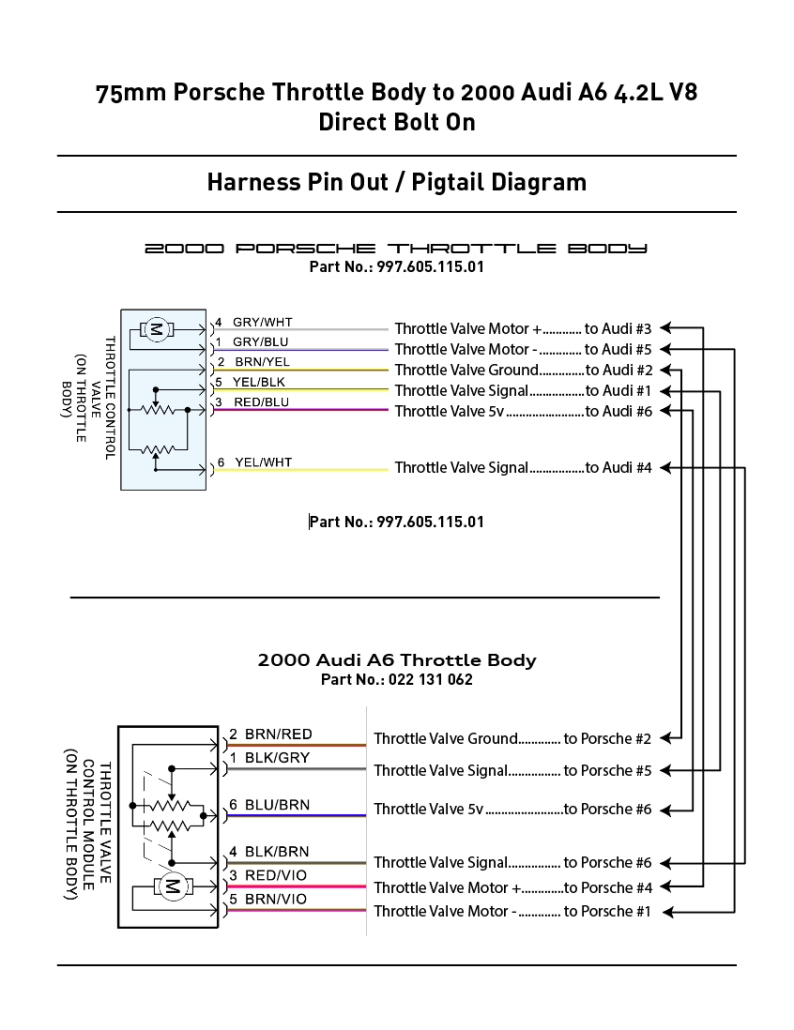

Harness Pin Diagram Throttle Body



Harness Pin Outs

The only a few slight differences that we found. Our throttle body and the Porsche TB both have 6 pin connectors. Although, the Audi pins are an even 6 pin pattern and the Porsches are an offset 6 pin pattern. This makes the connectors non-interchangeable. Also the pin outs are different. They are not a 1 to 1 pin out. As a result, I had to build a pigtail to plug directly into our harness. I could have repinned the OE harness with a different connector, but that was more work. After finding this out, I pulled the wiring diagrams from both vehicles and the schematics for the internal units are exactly the same. The wires got to different pin numbers. The wiring diagram for the pigtail  is shown below.

Connectors

As noted above the connectors are completely different, with a different patterns. The 75mm Porsche 911 throttle body uses this part found on Amazon. There is no part number that would could find in the Porsche parts catalog. But this part fitd perfect. For the Audi side of the pigtail, we purchased this kit, also on Amazon. We only needed the male part of this, but found it less expensive to purchase both sides. The other side can be saved for another project or ‘just in case’ situation.

Part Numbers

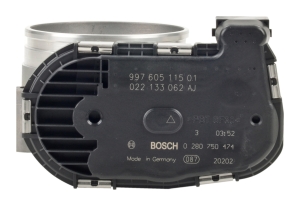

There are a few different 75mm Porsche throttle body part numbers that can be referenced. VW, Porsche and Bosch use different part numbers, however they all are the same part. The Porsche number, seen in the photo, is 997 605 115 01 / 99760511501. The Bosch part number 0 280 750 474 / 0280750474. The VW part number is 002 133 062 AJ / 022133062AJ, although no VW pr Audis that we know of uses this part. Porsche is owned by VW so naturally they put a VW part number on there. Fairly common throughout the history of VW, Audi and Porsche partnerships.

This throttle body bolts directly onto a stock 2000 Audi A6 and 2000-2003 A8s intake manifolds. With a custom built pigtail harness, will plug directly into the harness for the stock part number which was 077 133 062 / 077133062. This part number is NLA and is impossible to find new or used.

Performance Throttle Body Solution

Another thing that we noticed, the 2001 and up V8 Audis have a smaller throttle body plenum. This is either 65mm or 70mm. Unfortunately we ordered three different throttle bodies, and found this out the hard way. Furthermore, the bolt pattern on these is different. The inside plenum is also too small and would drastically reduced performance on our 2000 Audi A6 – if it happened to fit the bolt pattern, which they did not.

The part numbers that do not fit are the following: Bosch 0 280 750 487 / 0280750487 – Audi: 079 133 062 C / 079133062C. However, if you have a 2001 A6 / S6, A8 / S8, etc., with a smaller throttle body, this would be a great performance upgrade. We found a few companies online that sell the manifold and throttle body kits to install on a later model. You also might be able to hone out your stock manifold to open up to a 75mm opening. Although, you would need a adapter plate as the bolt pattern is slightly different.

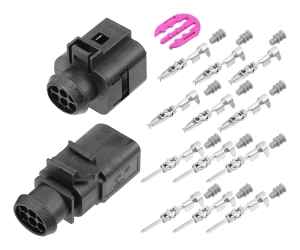

Audi Connector

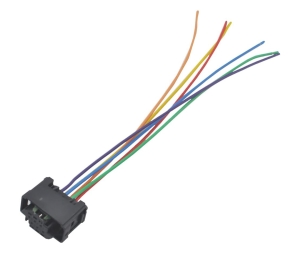

Porsche Connector

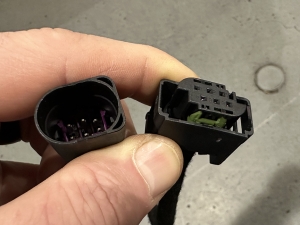

Pigtail

For more information on how to get your Audi A6, 4.2L V8 Audi or any vehicles listed above, in the shop for service, maintenance or custom work, contact us at 425-254-0627. You can also schedule an appointment or receive a quote by clicking here. Meister Werks European & Import is located one block south from The Renton Landing in Renton, WA, across the street from the former Boeing Store and at the westside of the Paccar / Kenworth plant.

/by

GIAC Porsche Performance Software Tuning

,

Meister Werks now offers GIAC Porsche Performance Software Tuning for your Porsche®. Below is a list of all the models we can tune. Additionally, each link below shows the HP / Lb.Ft.Tq. gains for each vehicle. They also show a dyno sheet with the before and after gains on your vehicle.

For more information on how to get your Porsche Performance Software installed, contact us at 425-254-0627. We also perform factory service, maintenance and repairs as well. You can also schedule an appointment or receive a quote by clicking here. Meister Werks European & Import is located one block south from The Renton Landing in Renton, WA, across the street from the former Boeing Store and at the westside of the Paccar / Kenworth plant.

Here is the updated list of supported models for Porsche Performance Software Tuning:



Turbo Charged Vehicles
Model Years Model Name Engine Platform
2001-2005 911 Turbo/Turbo 4 3.6L Turbo Charged More Info
2001-2005 911 Turbo S 3.6L Turbo Charged More Info
2002-2005 911 GT2 3.6L Turbo Charged More Info
2007-2009 911 Turbo 3.6L Turbo Charged More Info
2008-2009 911 GT2 3.6L Turbo Charged More Info
2010-2012 911 Turbo 3.8L Turbo Charged More Info
2010-2012 911 Turbo S 3.8L Turbo Charged More Info
2011 911 GT2 RS 3.6L Turbo Charged More Info
2013-2016 911 Turbo 3.8L Turbo Charged More Info
2013-2016 911 Turbo S 3.8L Turbo Charged More Info
2017-2019 911 Carrera / Targa 3.0L Turbo Charged More Info
2017-2019 911 Carrera S / Targa S 3.0L Turbo Charged More Info
2017-2019 911 Carrera GTS / Targa GTS 3.0L Turbo Charged More Info
2017-2019 911 Turbo 3.8L Turbo Charged More Info
2017-2019 911 Turbo S 3.8L Turbo Charged More Info

More Turbo Charged Vehicles
2018-2019 911 GT2 RS 3.8L Turbo Charged More Info
2019-2024 911 Carrera / Targa 3.0L Turbo Charged More Info
2019-2024 911 Carrera S / Targa S 3.0L Turbo Charged More Info
2022-2024 911 GTS 3.0L Turbo Charged More Info
2023-2024 911 Dakar 3.0L Turbo Charged More Info
2021-2024 911 Turbo 3.8L Turbo Charged More Info
2021-2024 911 Turbo S 3.8L Turbo Charged More Info
2018-2020 Panamera/Panamera 4 3.0L Turbo Charged More Info
2016-2023 Panamera 4S 2.9L Turbo Charged More Info
2017-2018 Cayenne S 3.6L Turbo Charged More Info
2016-2018 Cayenne GTS 3.6L Turbo Charged More Info
2019-2023 Cayenne / Cayenne Coupe 3.0L Turbo Charged More Info
2019-2023 Cayenne S 2.9L Turbo Charged More Info
2015-2018 Macan S 3.0L Turbo Charged More Info
2017-2018 Macan GTS 3.0L Turbo Charged More Info
2015-2018 Macan Turbo 3.6L Turbo Charged More Info
2019-2021 Macan S 3.0L Turbo Charged More Info
2020-2021 Macan GTS 2.9L Turbo Charged More Info
2020-2021 Macan Turbo 2.9L Turbo Charged More Info
2022-2024 Macan S 2.9L Turbo Charged More Info
2022-2024 Macan GTS 2.9L Turbo Charged More Info

Normally Aspirated Vehicles
2009-2012 Boxster S 3.4L Normally Aspirated More Info
2012-2016 Boxster S 3.4L Normally Aspirated More Info
2015-2016 Boxster GTS 3.4L Normally Aspirated More Info
2016 Boxster Spyder 3.8L Normally Aspirated More Info
2009-2012 Cayman S 3.4L Normally Aspirated More Info
2012-2016 Cayman S 3.4L Normally Aspirated More Info
2015-2016 Cayman GTS 3.4L Normally Aspirated More Info
2016 Cayman GT4 3.8L Normally Aspirated More Info
2002-2005 911 Carrera 4 3.6L Normally Aspirated More Info
2005-2008 911 Carrera S/4S 3.8L Normally Aspirated More Info
2005-2008 911 Targa S/4S 3.8L Normally Aspirated More Info
2009-2012 911 Carrera / Targa 3.6L Normally Aspirated More Info
2009-2012 911 Carrera S / Targa S 3.8L Normally Aspirated More Info
2011-2012 911 GTS 3.8L Normally Aspirated More Info
2011-2012 911 Speedster 3.8L Normally Aspirated More Info
2012 911 Carrera 3.4L Normally Aspirated More Info
2014-2016 911 Carrera S/4S 3.8L Normally Aspirated More Info

Why should you tune your Porsche?

Meister Werks is the go-to destination for anyone seeking top-notch GIAC Porsche Performance Software Tuning. By choosing us, your customers are opting for a winning combination of precision, performance, and expertise. Our seasoned professionals possess specialized knowledge and skill in enhancing Porsche vehicles with GIAC tuning, ensuring an unparalleled driving experience. For example, when customers contact Meister Werks, they gain access to cutting-edge technology. After all customize tuning solutions optimize their Porsche’s performance to perfection. Whether it’s achieving higher horsepower, improved torque, or enhanced fuel efficiency, our GIAC tuning services promise a ride like no other. Trust Meister Werks to elevate your Porsche’s capabilities and deliver a driving experience that exceeds all expectations. Contact us today and embark on a journey towards automotive excellence with GIAC Porsche Performance Software Tuning.

/by

Custom Heat Shield – BMW E24

, ,

Custom Heat Shield – BMW E24

This is a custom heat shield we made for a German market 1980 BMW 635csi E24 w/ a M90 engine. We’ve been working on this for a while and the attention to detail is imperative. This E24 is getting a brand new Super Sprint stainless steel exhaust system. We need to make sure the heat from that is contained and stays away from the fuel tank. First, we took measurements. Then, we hand bent a flat sheet of heat shield material with a flat metal bar. After that, we trimmed the edges to the body contour. Finally, we used our bead roller to roll the edges which makes it much more rigid.

Rear Heat Shield
Left Heat Shield
Right Heat Shield
Heat Shield w/ SS Exhaust Installed

For more information on how to get your classic European in the shop for some service, maintenance or custom work, contact us at 425-254-0627. You can also schedule an appointment or receive a quote by clicking here. Meister Werks European & Import is located one block south from The Renton Landing in Renton, WA, across the street from the former Boeing Store and at the westside of the Paccar / Kenworth plant.



Why you need this?

A heat shield for your European car’s exhaust system is essential for performance and safety. The exhaust system generates high temperatures. Without a heat shield, nearby components could be damaged due to the heat. This shield acts as a barrier. It prevents heat from radiating towards sensitive parts of the vehicle, such as the undercarriage or nearby wiring harnesses. By installing a heat shield, you ensure that your car’s performance remains consistent, protecting important components from potential heat-related issues. Additionally, it helps maintain a comfortable temperature within the car’s cabin and prevents overheating, ultimately extending the lifespan of your vehicle. Prioritizing a heat shield for your European car’s exhaust system is a wise investment in both vehicle efficiency and longevity.

/by

European BMW 635csi

,

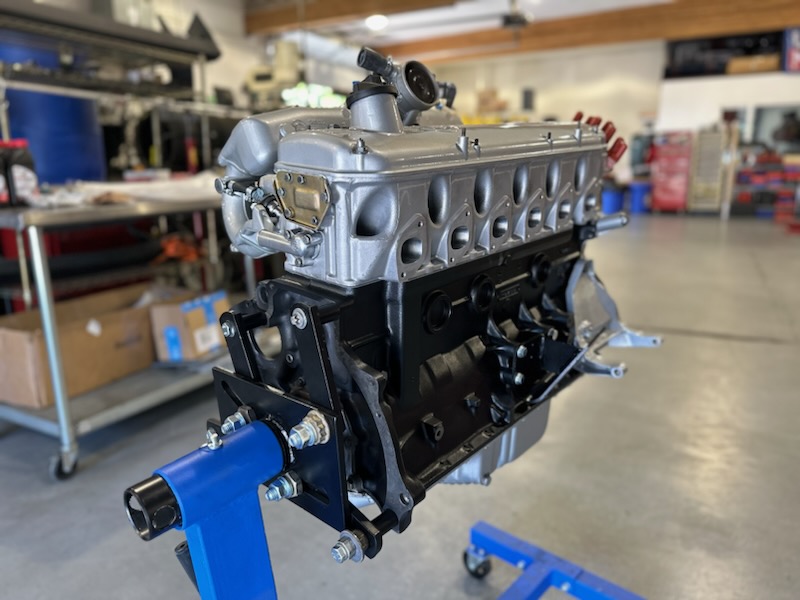

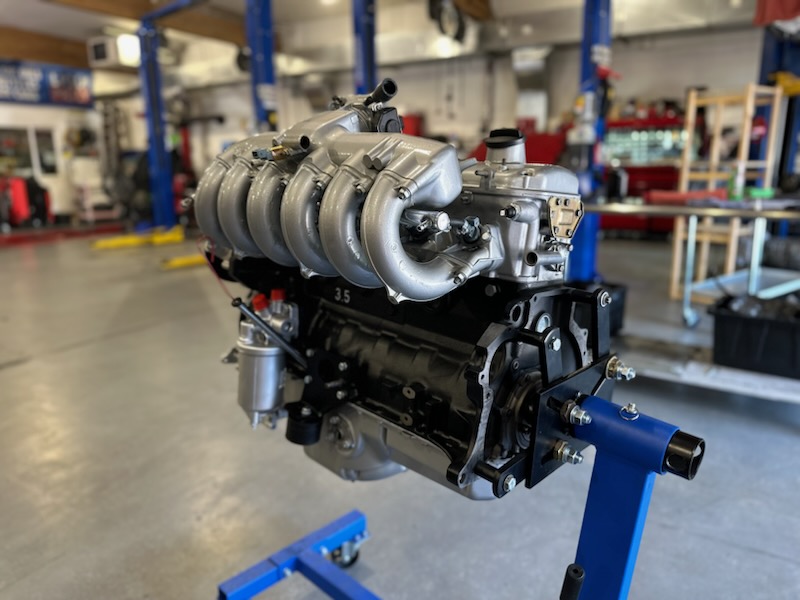

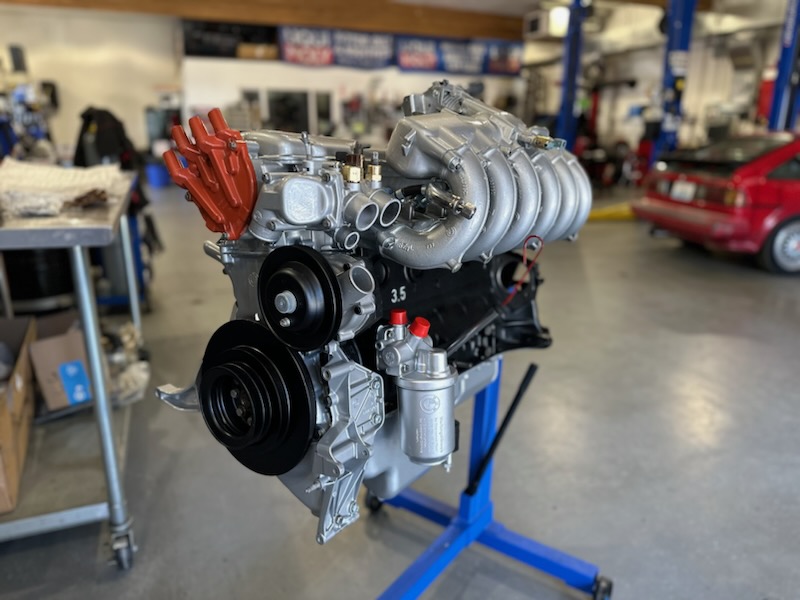

1980 Euro Spec BMW 635csi M90

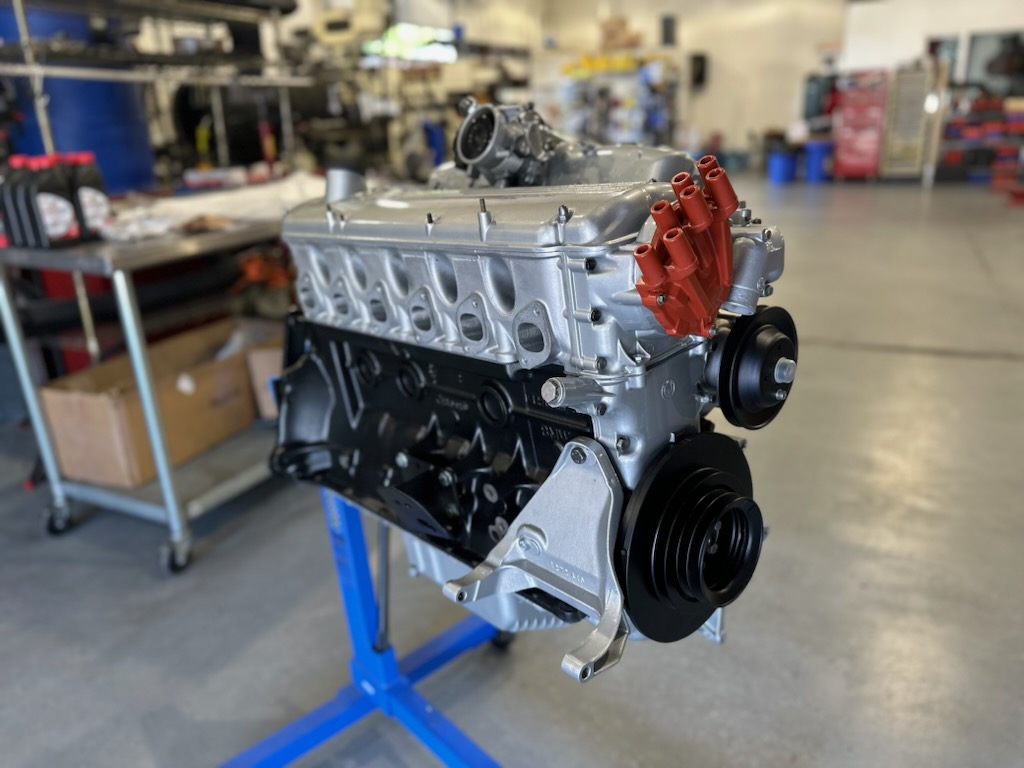

Today we finish a engine for a customer’s 1980 BMW E24 635csi. Here are the specs on this build.

Engine:

M90 Euro Spec
King Bearings
CP Forged Pistons 10:1 Flat Top

Head:

Stage 3 Port & Polished
Schrick Cams
Ireland Engineering Valve Spring, Rockers, & Guides
ARP Everything.

Powder Coat:

BMW Silver: Intake, brackets, oil pan, intake manifold & plenums, coolant flanges, etc…

Stay tuned to see this 635csi, subframe repair, steering, suspension, exhaust and custom header install.



1985 Article about the BMW 635csi

In many ways, the 635CSi is a superlative car. It produces prodigious speed thanks to its new 3.5-liter engine. The 635csi exhibits much better handling than BMW’s early 6-series coupes. It is put together ,vith rare care. Its ergonomics are generally excellent. And now it has Bosch ABS anti-lock braking equipment for help during emergency stops. All told, the 635CSi is a very accomplished piece of work.

Still, we’re talking 3.5-liter, high-rev­ving. seven-league boots here. BMW has punched out the 3.2-liter bore from 89 to 92mm, and the torque has increased from 195 to 214 pounds-feet. This single overhead-cam six is old. but it remains atop the pack in basic design. Its aluminum hen1i head is fed by Bosch Motronic fuel injection. Crossflow intake and exhaust ports handle the breathing. and a new, adaptive Lambda-sensor control sets the fuel-air mixture more precisely through a ,vider range of operation. ·ro allow maximum spark advance at all times, BMW has not yet resorted to a knock sensor, and the 3.5-liter motor compression ratio remains a impressive 10:1. The added dis­placement has bumped up, the horsepower only from 181 to well over 250hp. However, it is tuned instead for midrange response, the big six’s power peaks at 5400 rpm, 600 rpm earlier than in the 3.2-liter. A 3.45:1 final-drive replaces the 633’s taller 3.25 gear, boosting the throttle response throughout the rpm range. but a rev limiter clips the power smartly at 6200 rpm.

/by

T4 Eurovan Coolant Bottle Bracket Adapter

, , ,

T4.5 Eurovan Coolant Bottle Bracket Adapter

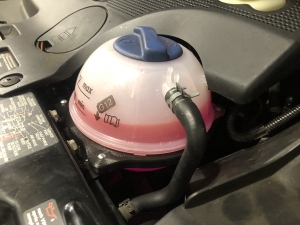

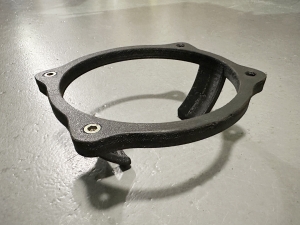

We had to make a custom adapter for a T4.5 Eurovan Coolant Bottle Bracket Adapter the other day. We needed a new coolant reservoir for our customer’s 2001 Volkswagen Eurovan VR6 MV. The warehouse sent me the wrong reservoir (Ver C, and not a Ver E). (701 121 407 E). The Ver C is for 1999-2000 Eurovans with a 12v VR6 engine, however all the connections and hoses are the same. It’s just 180º off from the one we needed. Apparently the Ver E coolant reservoirs are no longer available (NLA) and virtually impossible to find. We searched Classic VW parts, eBay and other sites and came up with zero results. Ver C is still available, however it is also hard to find, but they are available special ordered new from Europe. If you need a Ver C reservoir, we can get one for you.

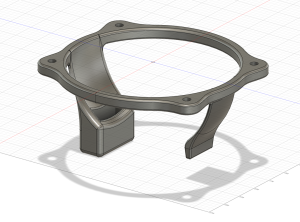

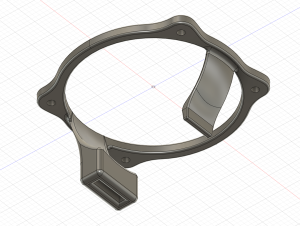

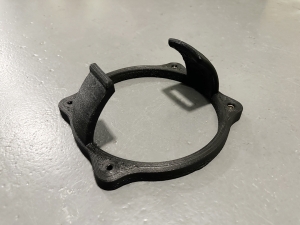

Instead of wasting time trying to find a new one, or installing a used part, we drafted a file in Fusion 360. Then we 3d printed this bracket. Printed with PA12-CF Polycarbonate Carbon Fiber (25%CF/75%Poly). The bracket is safe up to 220c / 428ºF. This will adapts the older C style bottles with the overflow return on the left / drivers side. These other tanks are readily available. Furthermore, this will fit so the left / drivers side electrical connection (coolant level sensor) fits the configuration for Eurovans with the Ver E bottles. Fits 2001+ T4.5 Eurovan / Transporter / Caravelle – 24v Engines, with the bottle that mounts to the core support. We also installed some brass inserts so we can just bolt it right in and the tank can be replaced it in the future, if need be.

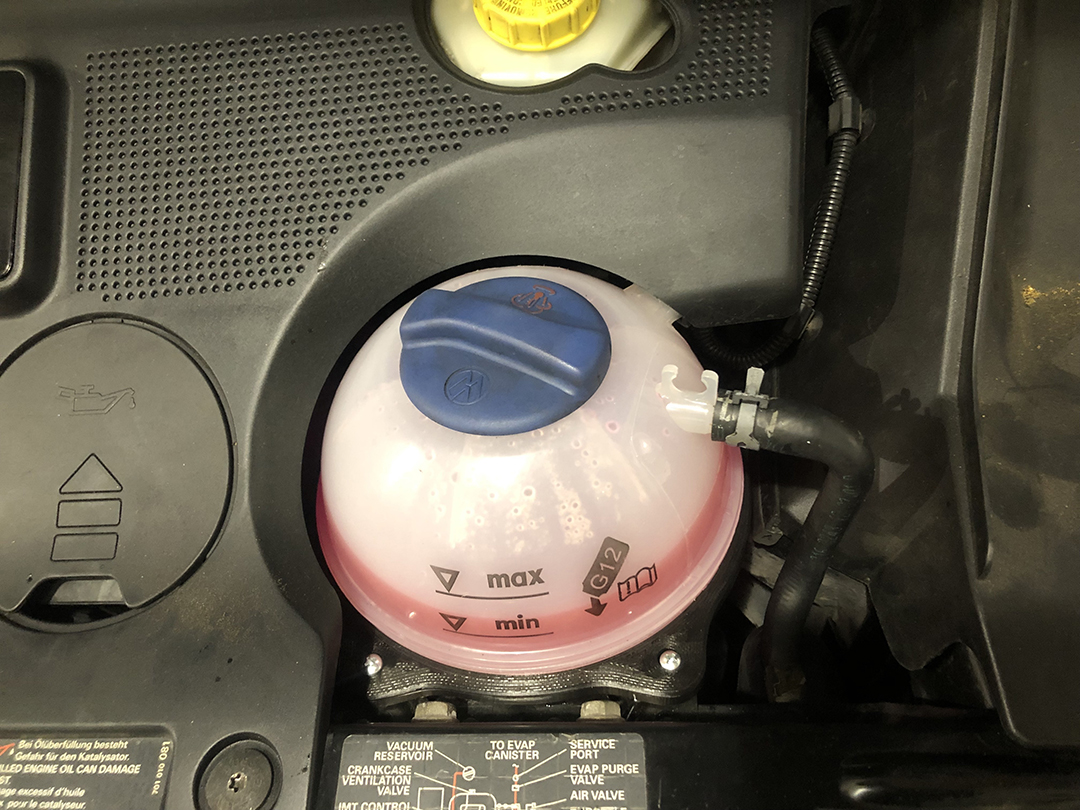

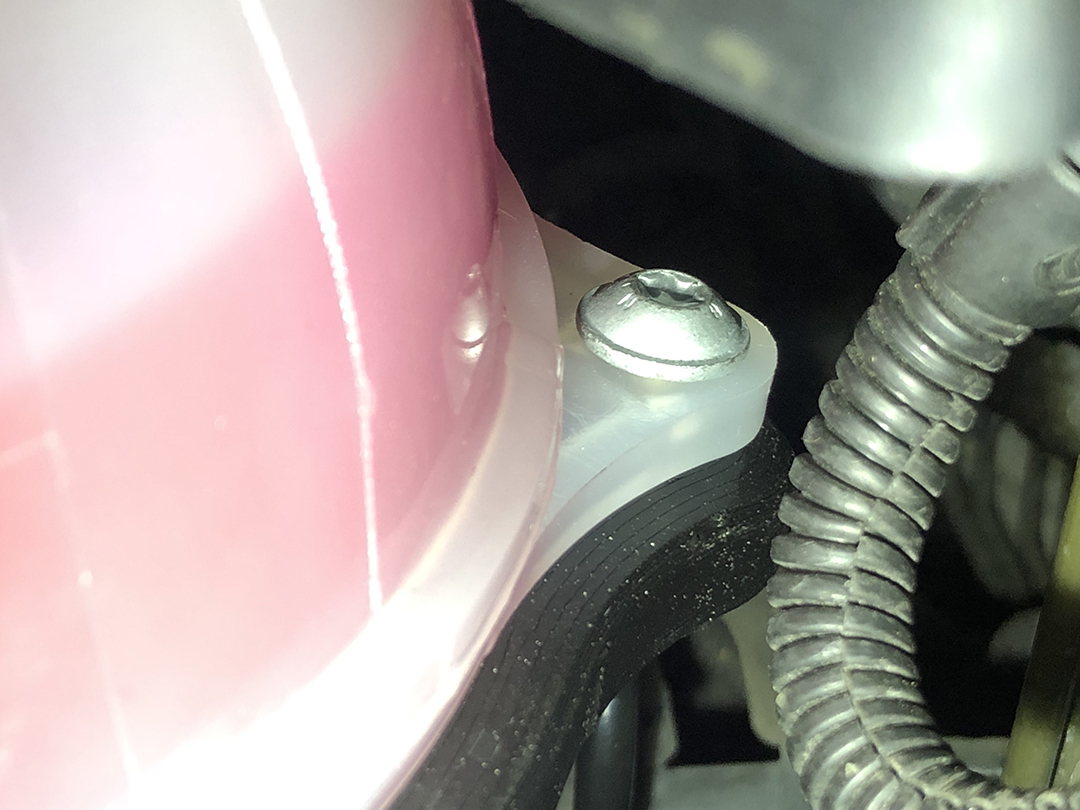

VW Eurovan Functional Application

Version 2.0

We revised our design a little to make it both easier to print and use less material. It’s just as strong as Ver 1.0.

VW Eurovan Coolant Bracket



More Info

For more information on how to get your Volkswagen Eurovan Repaired, please call 425-254-0627. You can also email us by clicking here. Meister Werks European & Import is located one block south from The Renton Landing in Renton, WA, across the street from the former Boeing Store and on the westside of the Paccar / Kenworth plant.

Purchase

If you would like to purchase one of these. You can do so by clicking the link below. These are made to order, so the turn time on these is approx 3-5 days to ship + shipping time.

Click Here to go to the shop site.



/by

500+ HP Audi TTRS

,

TTRS Performance Upgrades

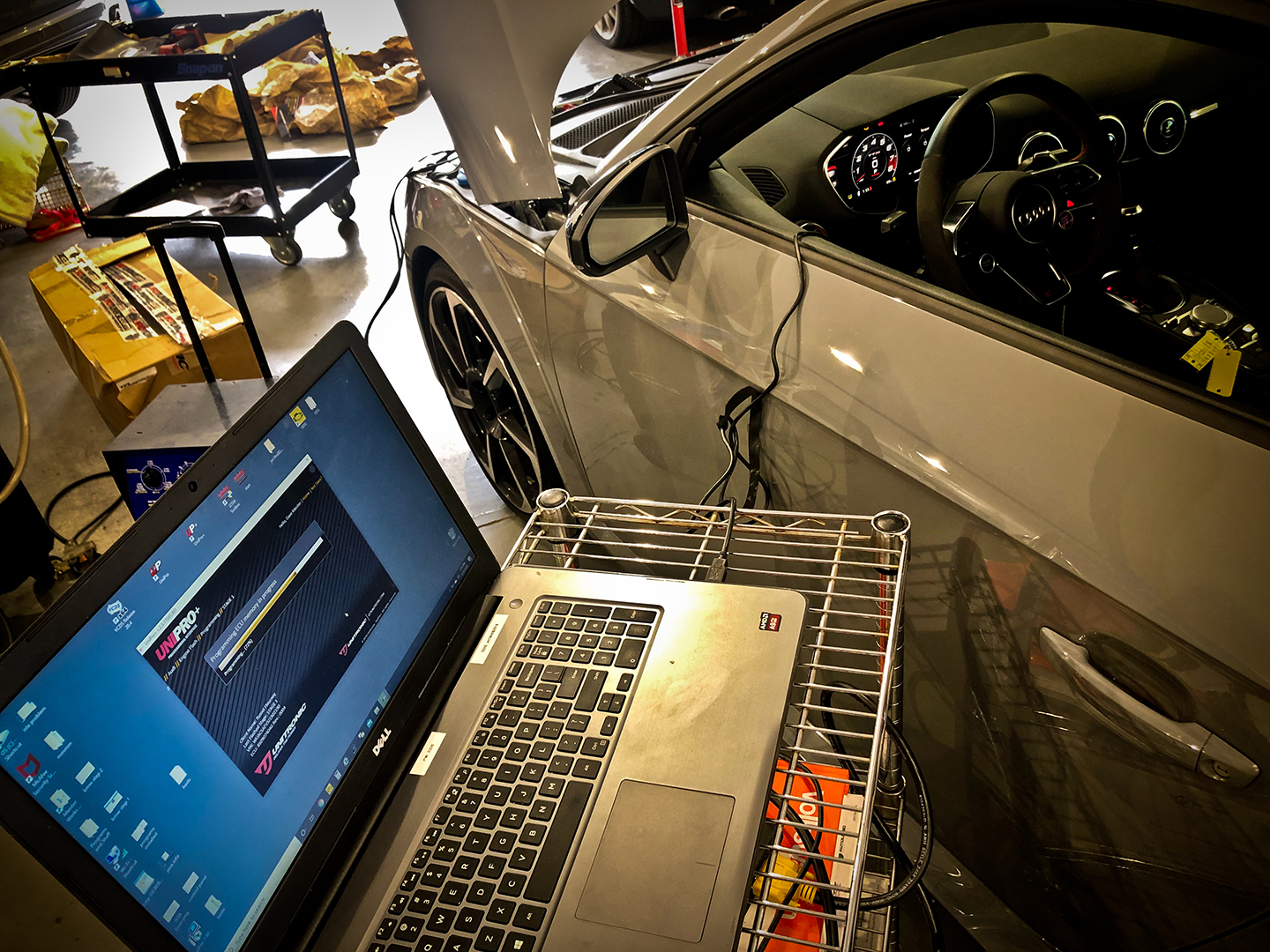

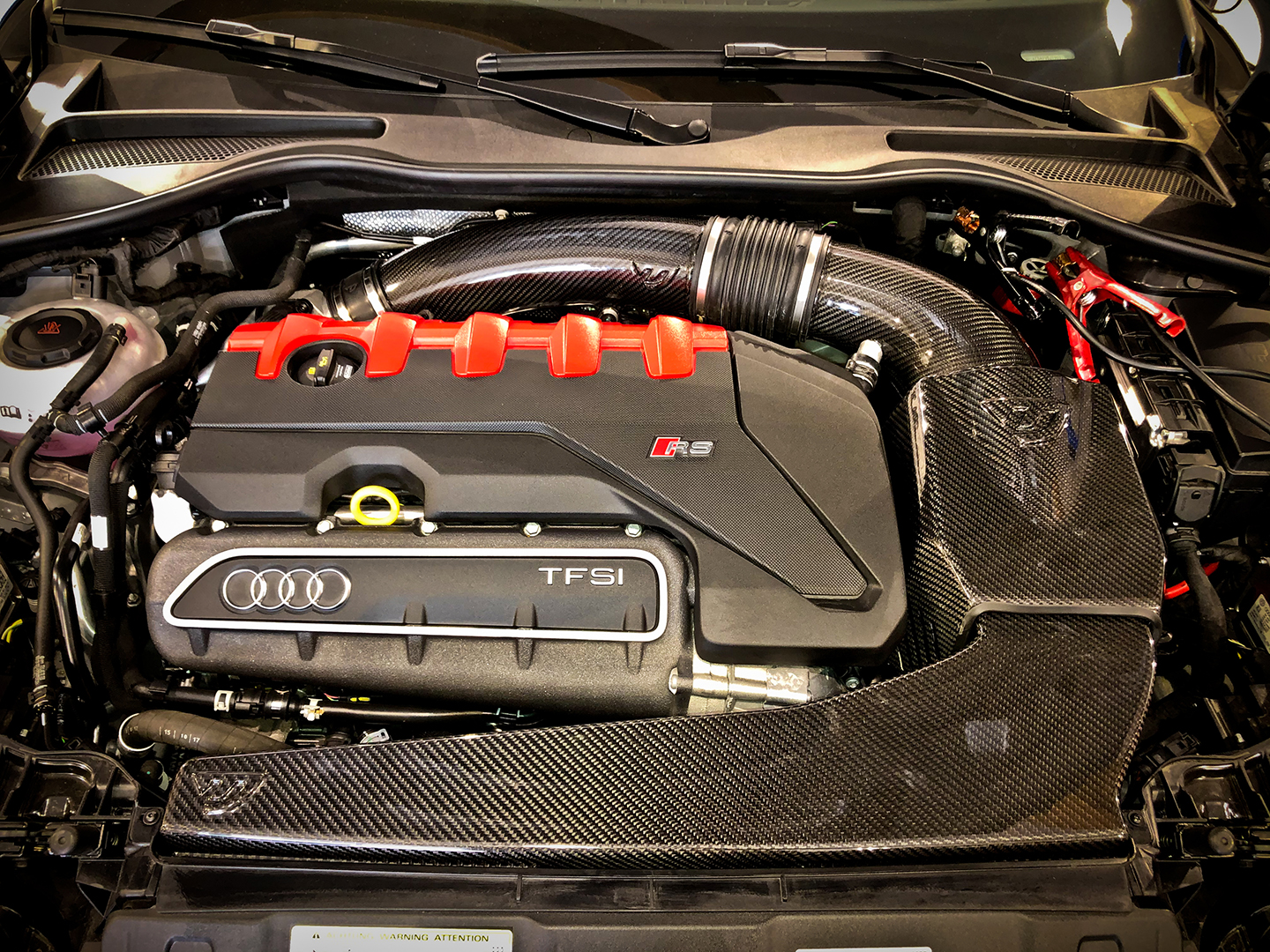

The inline 5 may be the most stout engine ever produced by Audi. But for some, the best is simply not enough… A long time customer brought in his 2018 Audi TTRS for a Carbon Cold Air Intake, 4 inch Turbo Inlet, Wastegate Lines and to top it off with a Stage 1 tune all supplied by Unitronic.



UNITRONIC STAGE 1 FOR AUDI TTRS MK3 2.5TFSI EVO
• STOCK POWER: 400HP / 354LB-FT
• After Tune: 476HP / 469LB-FT

Unitronic Stage 1 Performance Software is for vehicles with 91 octane / 95 RON fuel, on a completely stock car. It is the performance upgrade that will result in the most gains! Performance Software for your ECU Box Code is subject to availability. 2019+ models may require to have the hood opened during the flashing process.

UNITRONIC STAGE 2 DSG FOR AUDI TTRS MK3 2.5TFSI EVO

Flashed directly through the (OBDII) Diagnostic port of your vehicle (10-15 minutes). Unitronic’s TCU Performance Software calibration enhances the gear shift speeds making them up to 70% quicker. D-mode (Drive) is for everyday daily driving and economy, while S-mode (Sport) is for faster acceleration. Unitronic’s TCU Performance Software unlocks the factory launch control limiter. The OEM launch control limiter blocks the engagement of launch control after only 200 launches.

Unitronic’s Stage 2 TCU Performance Software calibrations increase TCU torque limiters to allow for an increased output. It’s been developed alongside Unitronic’s upcoming Stage 2 ECU Performance Software for the ultimate overall experience. Unitronic’s Stage 2 TCU Performance Software calibrations increase clutch clamping pressure. It is perfect, alongside Unitronic’s Stage 2 ECU Performance Software. This supports an increase in engine torque output and ensuring that the clutches properly grip . This also will help for the higher output to be sustained. Includes all Stage 2 tune variants and all lower software stages as well.

For more info on these products, check out the Unitronic Website by clicking here.

To make an appointment for your TTRS, Audi or European car, please call 425-254-0627. You can also email us by clicking here. Meister Werks European & Import is located one block south from The Renton Landing in Renton, WA, across the street from The Boeing Store and on the westside of the Paccar / Kenworth plant.
